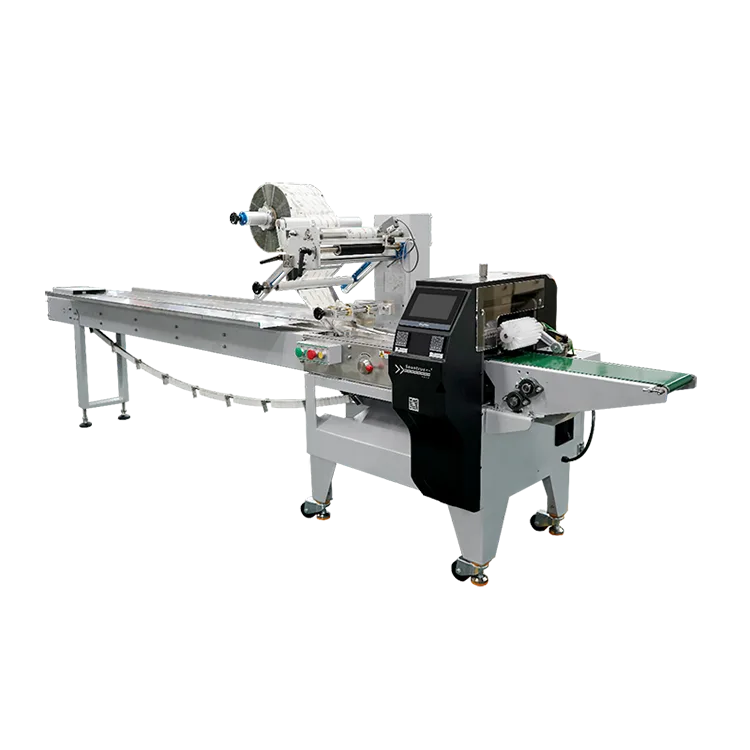

Horizontal Flow Packaging Machine 120-500mm for Bakery Medical Hardware

This Horizontal Flow Packaging Machine 120-500mm for Bakery Medical Hardware is an upgraded model within complete packaging product lines. It is specially optimized for medium and large solid goods that cannot be covered by standard flow wrapping devices, with extended length and width tolerance to fit oversized bakery food, integrated medical kits and bulky daily industrial products. Heavy-duty solid frame and upgraded servo control system maintain stable consistent packaging quality even under long-hour high-load continuous operation for mass production workshops.

Extended Size Design with Precise Three-Servo Control

The core drive system of the Horizontal Flow Packaging Machine 120-500mm for Bakery Medical Hardware adopts three independent servo motors to separately manage film feeding, cross cutting and heat sealing procedures. The separated servo control structure guarantees accurate film positioning and tight sealing edges even when wrapping thick, large-size items. A 7-inch full-color touch screen serves as centralized operation panel, which supports saving multiple sets of product parameter recipes. Operators can call pre-set formulas with one click to skip repeated manual calibration, and the built-in automatic bag length adjustment module further cuts manual setup time and lowers human error risks during frequent product switching.

Three Optional Cutter Configurations for Different Size & Throughput Demands

Single cutter version holds the unique advantage of supporting maximum 500mm long products, perfectly matching whole cake, long bread and integrated medical packaging demands. Double cutter balances speed and size for medium-sized goods, while triple cutter delivers peak efficiency for small high-volume accessories.

Core Functional Advantages

1.Full Servo Independent Control for Large & Heavy Product Packaging

Separate servo modules control every wrapping step, realizing precise film registration and uniform sealing effect on bulky, weighty goods. Stable running performance effectively reduces film consumption and lowers the rate of defective finished packages in long-term batch production.

2.Intelligent Recipe Storage & Automatic Dimension Matching

The touchscreen stores dozens of packaging parameter groups for different goods. Automatic bag length calibration eliminates manual measurement and adjustment every time product types change, greatly simplifying daily operation flow.

3.Broader Heat-Sealable Film & Oversized Product Compatibility

The equipment supports film width from 90mm to 400mm, compatible with OPP/CPP, PT/PE, KOP/CPP and metallic composite wrapping films. It can handle various oversized solid articles that exceed the dimension limit of ordinary flow wrapping machines.

4.Streamlined Hygienic Layout for Low Maintenance Burden

Modular mechanical structure is designed for quick disassembly, cleaning and regular lubrication. Simple internal transmission layout shortens maintenance downtime and extends service cycle of core machine components.

5.Highly Automated Operation to Cut Operator Workload

One-click recipe recall, auto size matching and automatic positioning functions cut frequent manual intervention greatly. A single operator can supervise multiple sets of equipment simultaneously, effectively lowering long-shift fatigue for warehouse staff.

Packaging Materials, Sealing Modes & Optional Functional Modules

1. Applicable Packaging Films

This large flow wrapper supports multiple mainstream roll films, including OPP, PE, KOP, metallized composite film and multi-layer food-grade composite film. The film width can be freely adjusted between 90-400mm without extra mold replacement to match oversized bakery, medical and hardware goods.

2. Sealing Modes

Hot heat sealing is the standard configuration, with constant temperature control to ensure tight, leak-proof sealing edges. Cold sealing assembly is available as an optional accessory for special self-adhesive composite films used in specific medical products.

3. Optional Auxiliary Functions

Nitrogen flushing module: Can be equipped for frozen cakes, fresh pastries and sterile medical kits to isolate oxygen, lock freshness and extend shelf life;

Empty bag detection sensor: Automatically identifies film without loaded goods, triggers alarm and pauses film feeding to cut film waste;

Anti-mis-cut protection sensor: Real-time tracking of product position to avoid cutting goods during high-speed operation and reduce defective packages.

Typical Industry Application Scenarios & Real Overseas Client Cases

1.Bakery & Confectionery Industry

Fit whole cakes, long bread and assorted pastries. European cake factories adopt single-cutter units for tidy retail packaging.

Case: A European central cake factory uses this model for whole cream cake wrapping to match its 500mm length limit.

2.Pharmaceutical & Medical Industry

For surgical kits, gauze rolls and diagnostic supplies. Southeast medical manufacturers select double-cutter versions to meet local hygiene standards.

Case: A Southeast medical enterprise applies double cutter equipment for sterile instrument set packaging.

3.Daily Consumer Goods

Suitable for large tissue packs, solid soap and oversized sanitary articles.

4.Industrial Hardware

Match medium hand tools, complete hardware sets and bulky metal parts.

Full Supporting Services For Global Purchasers

1.Full CE inspection documents supplied for smooth overseas customs clearance;

2.Custom feeding & sorting conveyors can be matched per product shape;

3.15-month full machine warranty, lifelong remote technical support, overseas maintenance coordination available;

4.Accept T/T and sight L/C, stable lead time for full container orders;

5.Free pre-production packaging test before formal bulk orders.

Frequently Asked Questions

Q1: What cutter model should I choose for whole cream cake packaging?

A: Single cutter supports max 500mm long goods, the perfect option for whole cakes and long bread. Double cutter fits medium items 60–300mm, triple cutter for small high-volume products under 100mm.

Q2: Can this machine realize nitrogen-filled packaging for sterile surgical kits?

A: Yes, nitrogen flushing module is optional, cooperating with standard hot sealing to complete oxygen-isolated sealed medical packages.

Q3: What kinds of wrapping films are compatible with this machine?

A: It supports OPP, PE, KOP, metallized film and multi-layer composite film, adjustable film width 90–400mm.

Q4: Does the machine have functions to reduce empty bags and product cutting defects?

A: Empty bag detection sensor and anti-mis-cut sensor are optional add-ons to cut waste and defective rate in continuous production.

Q5: Can I switch packaging products between cakes and medical kits quickly?

A: The touch screen stores multiple product recipes, one-click parameter recall without repeated manual calibration.

Q6: Besides hot sealing, is cold sealing available as an option?

A: Hot sealing is standard; cold sealing assembly can be added for special self-adhesive packaging films.

Q7: What after-sale support will I receive after purchase?

A: 15-month full machine warranty, lifelong remote technical guidance, overseas maintenance coordination; free sample wrapping test service is provided in advance.

If you need reliable Horizontal Flow Packaging Machine 120-500mm for Bakery Medical Hardware to pack oversized bakery, medical or hardware goods, please get in touch with Soonwell to apply for free packaging samples and exclusive customized quotation. Our professional technical team will design targeted packaging plans according to your maximum product size and daily production target.
