Vertical Form Fill Seal VFFS Packaging Machines have revolutionized the way manufacturers handle powdered, granular, liquid, and solid products. At Soonwell, we design these systems to meet the rigorous demands of modern production lines. Understanding how a VFFS machine works, what specifications matter, and how to integrate it into your workflow can directly impact your bottom line.
How a Vertical Form Fill Seal Machine Operates

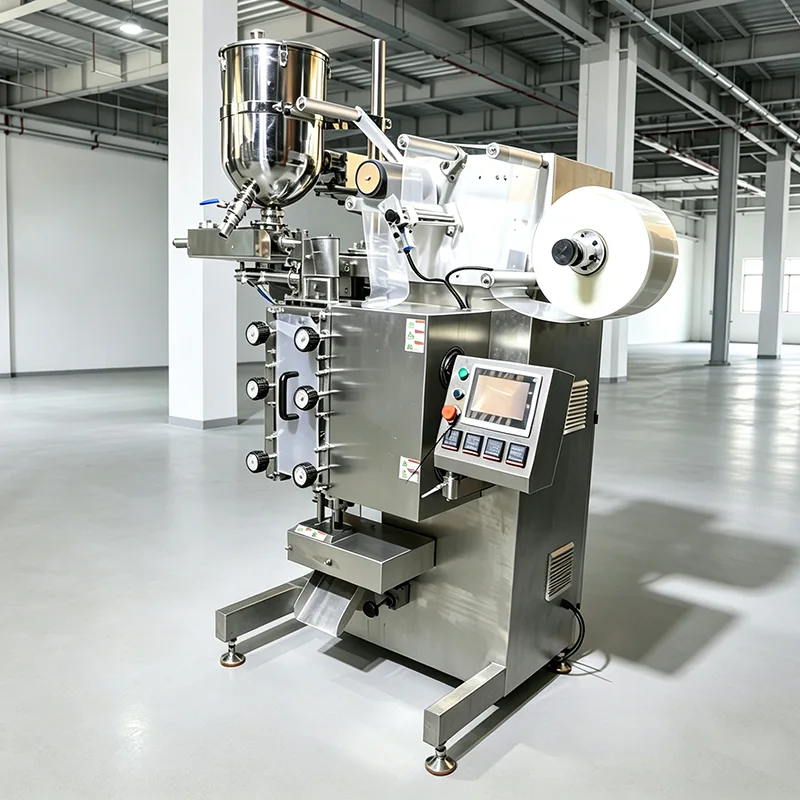

A continuous roll of flat film unwinds and passes over a forming collar. The collar shapes the film into a tube around a filling pipe. Vertical sealing jaws create a longitudinal seal along the overlapping edges of the film. Simultaneously, horizontal sealing jaws close the bottom of the bag, the product drops through the filling pipe into the formed pouch, and the top seal completes the package. The machine then cuts the bag from the tube, and the cycle repeats. This sequence happens at high speed, often producing 30 to over 120 bags per minute depending on model, bag size, and product characteristics.
Key components in every Soonwell VFFS system include:
-
Film unwind and tension control system with automatic alignment
-
Forming tube set precisely matched to bag width
-
Vertical seal mechanism (heat seal or ultrasonic)
-
Horizontal seal and cut jaws with independent temperature control
-
Servo-driven pull belts or friction rollers for film transport
-
Product filling system (auger, volumetric cup, liquid pump, multi-head weigher interface)
-
PLC control panel with touchscreen HMI
-
Optional gas flush, date coder, hole punch, and tear notch units
Why Soonwell VFFS Machines Deliver Consistent Results
Users often ask how we maintain seal integrity at high speeds. The answer lies in our thermal control and mechanical design. We use PID-controlled heating elements with fast-response thermocouples mounted directly on the sealing jaws. This real-time feedback loop prevents temperature overshoot and compensates for line speed changes. The jaws themselves are precision machined from aluminum with a PTFE coating to reduce sticking and ensure even pressure distribution.
Film tracking is another common challenge. Our automatic edge guiding system uses an optical sensor to detect the film edge and adjust the unwind carriage in real time. Combined with servo-driven pull belts, we hold registration accuracy to ±0.5 mm even at maximum speed. The result is consistently centered print and reliable seal alignment batch after batch.
Common Applications Across Industries
Soonwell VFFS machines handle an extremely wide range of products. Here are concrete examples:
-
Food: Potato chips, frozen vegetables, shredded cheese, biscuits, dried fruit, instant noodles, spices, coffee beans, ground coffee.
-
Beverage: Premix coffee powder, tea leaves, protein powder, hot chocolate mix.
-
Pharmaceutical: Granulated medicine, powdered supplement sachets, pill pouches.
-
Pet food: Dry kibble, treats, bird seed, fish food.
-
Hardware: Screws, nuts, bolts, washers, small plastic parts.
-
Chemicals: Detergent powder, fertilizer granules, pool chemicals, water treatment pellets.
-
Cosmetics: Bath salts, face mask powder, dry shampoo.
Installation, Validation, and After-Sales Support
SoonwellVertical Form Fill Seal VFFS Packaging Machines undergoes a factory acceptance test (FAT) before shipment. Our engineers then supervise installation, calibrate all parameters to your specific film and product, and conduct site acceptance testing (SAT). IQ/OQ/PQ documentation is available for regulated industries. After installation, we offer 24/7 remote support via VPN connection to the PLC, along with periodic in-person maintenance visits.
