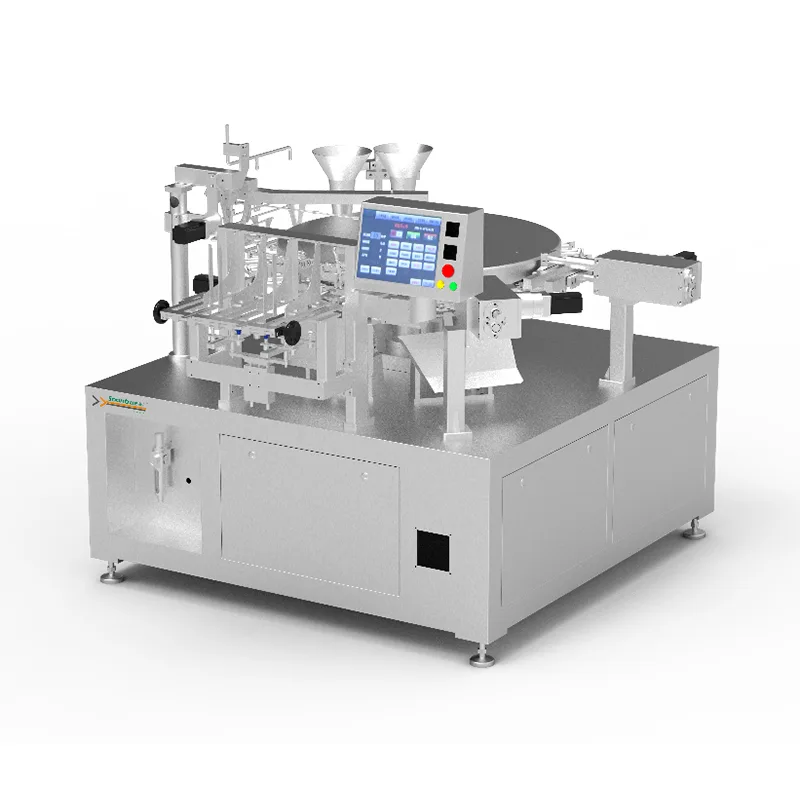

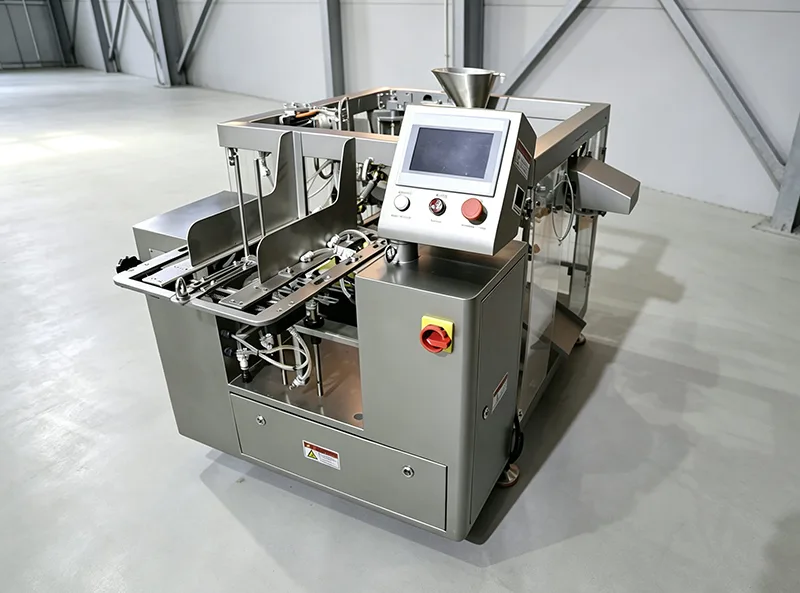

This 6-station rotary doypack packing machine automates packaging for flat pouches, stand-up doypacks and zipper premade pouches. Widely deployed in snack, frozen food, seasoning, grain, chemical and pharmaceutical industries.
It processes blocks, granules, powders, liquids and sauces such as nuts, frozen dumplings, spice powder and edible sauces. This rotary premade pouch machine meets flexible production demands for medium-high output food factories.
· 6 rotary stations
· Max speed: ≤60 bags/min
· Pouch size: L ≤260 mm, W 90-180 mm
· Air supply: 5-7 Kg/cm², 0.4 m³/min
· Power: 3.4 Kw, 380V
· Dimension:1550 × 1250 × 1150 mm
· Weight: approx 400 kg
Full-servo drive delivers fast, accurate rotary-station movements. The 6-station rotary structure completes pouch feeding, opening, filling, sealing and discharging in one cycle, cutting manual labor and boosting line throughput. Intelligent pouch detection eliminates idle cycles for stable long-shift continuous operation.
This 6-station rotary doypack packing machine runs on Ether CAT bus communication. Industrial PC plus large touch-screen HMI enables centralized operation for parameter adjustment, status monitoring and fault log review.
It features automatic fault tracking & real-time alarm, reliable servo assemblies and multi-product recipe storage for quick product changeover. Built-in pouch tracking sensors skip sealing automatically for unopened or empty pouches to reduce material waste.
Our 6-station rotary doypack packing machine supports practical customization. Custom pouch-gripping moulds fit flat pouches, stand-up doypacks and zipper pouches within 90-180 mm width and 260 mm length.
OEM & ODM services are available for global buyers. Optional upgrades include nitrogen flushing for frozen-food freshness, extra filling modules and modified sealing assemblies for special composite films. Custom communication interfaces support integration with upstream feeding and downstream case-packing equipment. Non-standard adjustments can be made per factory layout and production targets
