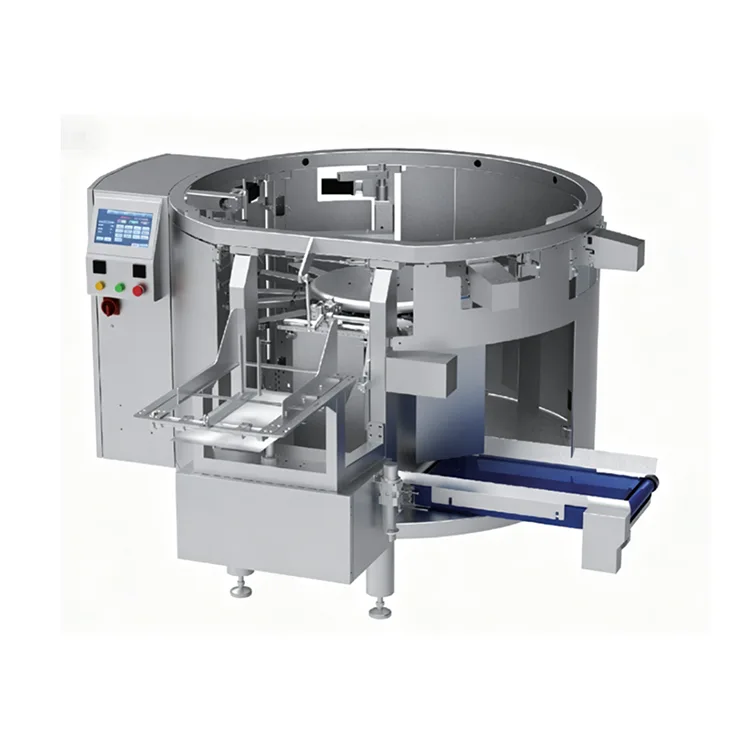

The 8 Station Large Pouch Packaging Machine for Granules Powder Liquid is developed for manufacturers handling high-volume products that require larger premade pouch formats. Unlike conventional pouch packaging equipment designed for small retail bags, this model focuses on wide-mouth bags ranging from 220mm to 350mm, providing sufficient packaging space for bulk materials.
The machine integrates pouch loading, opening, filling, and sealing processes into one automated system. It is suitable for granules, powders, liquids, and paste products where consistent filling accuracy and clean sealing performance are required.
With flexible configuration options, Soonwell can customize this equipment according to different material characteristics, including weighing systems for granules, screw feeding systems for powders, and liquid filling units for viscous products.
Granule Packaging Solution
For products such as grains, seeds, pet food, and fertilizer materials, the machine can be matched with weighing systems to achieve accurate filling and reduce material loss during high-volume production.
Powder Packaging Solution
Powder materials often create dust and filling instability during packaging. Soonwell provides suitable feeding configurations to improve filling consistency and maintain cleaner production conditions.
Liquid Packaging Solution
For sauces, liquid chemicals, and other fluid products, the machine can integrate liquid filling systems with sealing control to reduce leakage risks and improve packaging reliability.
Servo-Controlled Precision System
The independent servo drive system improves movement accuracy during pouch handling, filling, and sealing processes. It helps maintain consistent packaging quality while reducing adjustment requirements during continuous operation.
Wide Pouch Handling Capability
Supporting pouch widths from 220mm to 350mm and lengths up to 500mm, the machine provides greater flexibility for manufacturers producing bulk-size packages.
Intelligent Production Monitoring
The touchscreen control system allows operators to monitor machine status, adjust parameters, and store packaging recipes for faster product changeover.
|
Parameter |
Specification |
|
Model |
GDS350B-08 |
|
Stations |
8 |
|
Output |
≤ 50 packs/min |
|
Pouch Length |
100 – 500 mm |
|
Pouch Width |
220 – 350 mm |
|
Pouch Types Supported |
Flat, stand-up, zipper, M-type, and other premade pouches |
|
Power Supply |
380V, 50Hz |
|
Installed Power |
6 Kw |
|
Compressed Air |
5-7 Kg/cm², 0.4 m³/min |
|
Net Weight |
Approx. 700 kg |
|
Footprint |
2450 × 2250 × 1400 mm |
Large-volume products usually require more labor during bag handling, filling, and sealing processes. This machine combines multiple packaging procedures into an automated workflow, reducing manual intervention and improving production consistency.
The eight-station rotary structure allows continuous pouch processing, helping factories maintain stable output during long production cycles.
The equipment supports connection with upstream and downstream machines, including:
Automatic weighing systems
Liquid dosing equipment
Powder feeding systems
Check weighing machines
Cartoning and case packing equipment
This allows manufacturers to gradually upgrade from standalone packaging to complete automated production lines.
The 8 Station Large Pouch Packaging Machine for Granules Powder Liquid is widely used by manufacturers requiring large-format automatic packaging solutions.
In the pet food industry, it supports bulk kibble and feed packaging. Agricultural companies use it for seeds, grains, and fertilizer materials. Food manufacturers apply it for large snack bags, powders, and seasoning products. Chemical and industrial companies use it for packaging powder, granule, and liquid raw materials where efficient and reliable sealing is required.
Soonwell works with experienced packaging machinery manufacturers and provides solutions for food, agriculture, chemical, pharmaceutical, and consumer product industries.
From product testing and machine selection to installation guidance and after-sales support, Soonwell helps buyers build suitable packaging solutions instead of only supplying equipment.
Different products require different filling methods and packaging speeds. Soonwell provides customized configurations based on material characteristics, pouch dimensions, and production targets.
