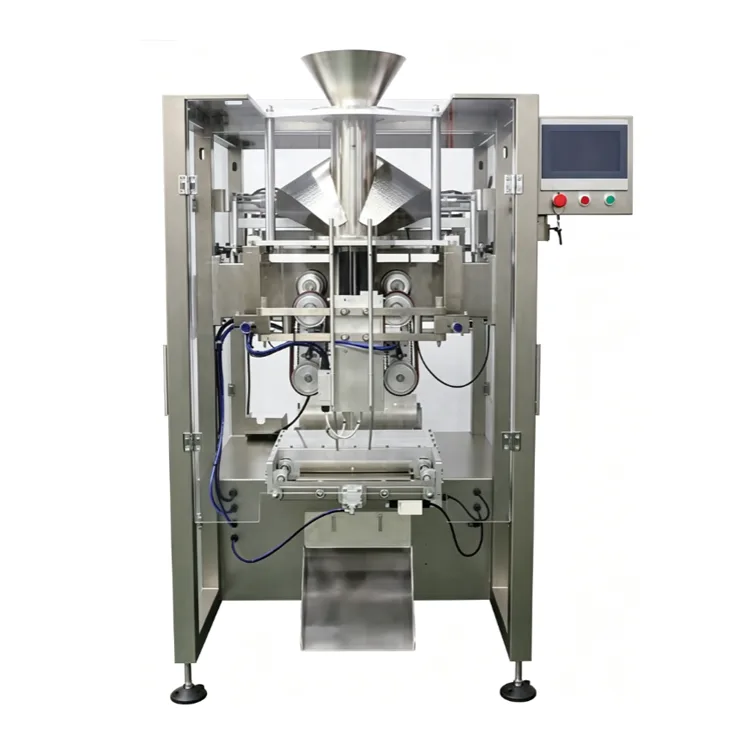

Automatic Vertical Packaging Machine for Max Bag Width 350mm

The Automatic Vertical Packaging Machine for Max Bag Width 350mm is designed with the operator in mind, ensuring minimal training requirements and maximum ease of use.

The machine features an intuitive touchscreen interface that provides clear, user-friendly operation with real-time production status visibility. Operators can monitor production parameters, adjust settings, and access diagnostic information through simple interactions, significantly reducing the learning curve for new operators.

Machine parameters such as film tension, sealing temperature, and bag length can be adjusted directly through the HMI without requiring mechanical changes, dramatically reducing setup time and operator intervention. Multiple packaging recipes can be stored and recalled with just a few taps, enabling rapid changeovers between different products and bag configurations.

The streamlined mechanical design facilitates straightforward maintenance and cleaning. Components are easily accessible, and common adjustments require no specialized tools. The simple mechanical structure also means fewer components to maintain, with routine maintenance limited to lubrication and periodic inspection of wear parts.

The machine's straightforward design and clear HMI interface allow new operators to become proficient with brief training, reducing labor costs and simplifying workforce management. The smart control system provides diagnostic information to assist with troubleshooting, reducing reliance on specialized technical support and minimizing downtime.

Rejection Rate and Quality Control

The Automatic Vertical Packaging Machine for Max Bag Width 350mm is engineered to minimize product defects and maximize packaging yield through multiple quality control mechanisms.

The single-servo dual-film-pulling system provides precise film tension control, preventing film wrinkling or stretching that could lead to sealing defects or misaligned bags. This precise control ensures consistent bag formation and sealing quality at high speeds, significantly reducing film-related rejects.

The machine features accurate temperature control for sealing systems, ensuring consistent seal quality across different products and operating conditions. Proper sealing temperature is critical for preventing leaks or weak seals that could lead to package rejection, and the independent PID temperature control maintains optimal sealing conditions.

The advanced control logic detects abnormal film feeding or product flow, automatically stopping the machine to prevent empty bag formation and reduce material waste. The system also monitors for product bridging or flow interruptions that could lead to incomplete filling.

The precision color code control system ensures accurate film cutting at the correct position, eliminating misprinted or misaligned bags that would be rejected for cosmetic defects. This is particularly important for printed films where proper registration is essential for brand presentation.

The HMI provides clear operational status and fault diagnostics, enabling operators to identify and correct quality issues rapidly before they result in rejections. The system detects irregularities in sealing temperature, film tension, and filling accuracy, providing early warnings that prevent batch-scale defects.

Technical Specs

Core design patent: Hygiene and safety

This Automatic Vertical Packaging Machine for Max Bag Width 350mm is engineered with product safety and hygiene as top priorities.

The entire machine design complies with Good Manufacturing Practice (GMP) standards, enuring suitability for food and pharmaceutical applications requiring stringent hygiene practices. Full CE certification confirms compliance with European safety, health, and environmental protection requirements, enabling seamless integration into international production facilities.

All product contact parts are manufactured from food-grade materials compliant with international food safety standards, ensuring no contamination of packaged products. The machine features smooth, easy-to-clean surfaces with minimal crevices, preventing product accumulation and bacterial growth. The filling tube and forming collar are designed for easy cleaning and sanitization, with material flow paths that minimize product residue.

Electrical control panels and mechanical components are enclosed to prevent dust ingress and ensure reliable operation in demanding processing environments. The hygienic material handling design ensures that product contact surfaces are accessible for thorough cleaning, reducing the risk of cross-contamination between production runs.

Product automation level demonstration

The Automatic Vertical Packaging Machine for Max Bag Width 350mm is engineered for seamless integration into automated production lines, enabling complete packaging line solutions.

The machine is designed to interface directly with computer multihead combination weighers for accurate product dosing and filling. It can also be connected to bucket elevators for continuous product supply from upstream processing equipment, and is compatible with various conveyor systems for efficient product transport and line coordination.

For downstream integration, the machine can be connected to checkweighers for weight verification, metal detectors for contaminant detection, and case packing systems for fully automated packaging lines. The control system can coordinate with upstream and downstream equipment through its rich I/O interface, ensuring synchronized operation across the entire production line.

The compact, space-efficient design with standardized interfaces enables straightforward installation in new or existing production layouts. The machine can be configured as a standalone unit or fully integrated into complete production lines with conveying and packaging systems, providing flexibility for manufacturers with varying automation requirements.

For customers needing specific integration configurations, the machine's modular design allows for customization to match existing equipment layouts and production flow requirements, ensuring seamless integration without extensive line modifications.
