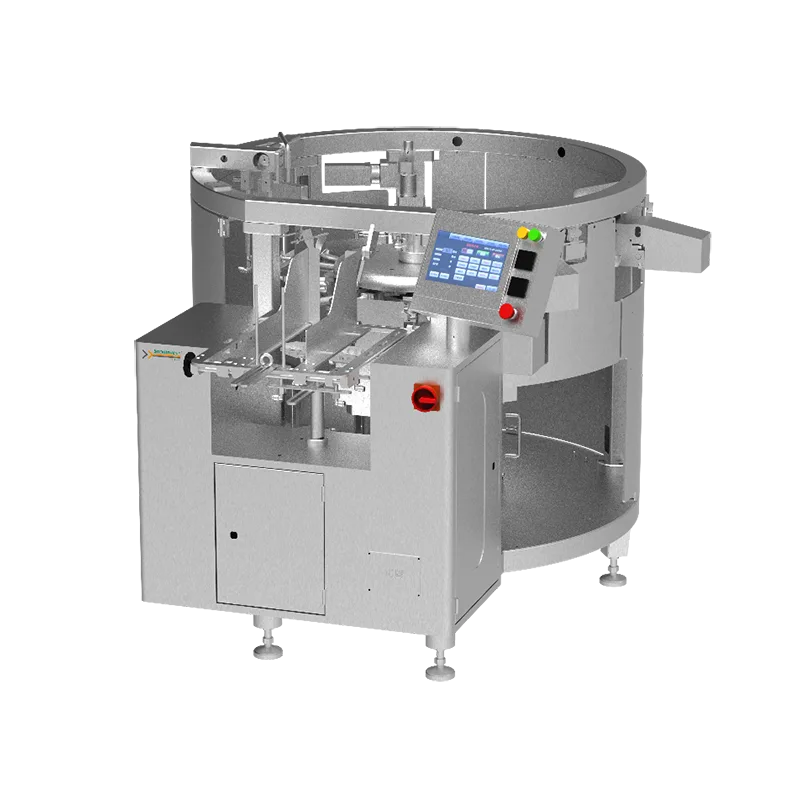

Large-Scale 8-Station Rotary Doypack Machine for Long Bags

It adopts EtherCAT bus communication for high-speed data exchange between the packaging host and peripheral auxiliary machines. The whole packaging line can synchronize start-stop, speed matching and fault interlock signals. It is ideal for end-to-end automated packaging workshops, reducing manual transfer between individual machines and improving overall line throughput for long pouch packaging projects.

Regional Market Compliance & Safety Protection

This 8 station rotary long bag doypack packaging machine meets GMP design requirements for hygienic production environments. The machine is equipped with CE certified core components and complete safety protection devices to satisfy EU market access requirements. Safety interlock doors, emergency stop buttons and safety sensors are installed across the rotary station area. The machine triggers automatic halt once safety barriers are opened during running. All electrical cabinet and wiring constructions follow international industrial safety standards. It can be deployed in food, nutraceutical and chemical factories targeting European, North American and other overseas markets, fulfilling local machinery safety regulations.

Sanitary Design & Food Safety Standards

This large-scale rotary doypack machine for long bags features food-grade stainless steel product contact surfaces. The structural layout avoids dead corners where residues can accumulate, simplifying sanitation cleaning between production batches. Its hygienic design strictly complies with GMP standards for food and pharmaceutical processing environments. Surface treatments resist corrosion from water, oil, sauces and acidic ingredients. The sealed servo and electrical modules prevent contamination from dust and splashing materials. This rotary premade pouch packing machine is well-suited for high hygiene requirement applications including ready-to-eat food, seasonings and health supplements.

Packaging Material, Sealing & Auxiliary Functions

This 8-station rotary long bag doypack machine works with single-layer PE, PE composite film, paper film and other multi-layer laminated packaging materials. It uses reliable heat sealing for strong, leak-proof pouch seams. Optional nitrogen flushing module retains freshness for long shelf-life food products. The built-in empty pouch tracking detection system implements no-pouch no-seal and no-material no-seal logic, which prevents wasted film and eliminates empty packages. It supports flat pouches, stand-up pouches, zipper pouches, hand carry pouches and M gusset pouches for long bag sizes up to 400mm in length and 260mm in width.
