Article Summary: Small-format liquid packaging requires more than high production speed. Manufacturers need accurate filling, reliable sealing, flexible film compatibility, simple operation, and efficient cleaning. The High Speed Automatic Liquid VFFS Machine for Max Bag Length 150mm combines vertical form-fill-seal technology with a four-servo control configuration to automate film forming, liquid filling, sealing, and cutting. With a maximum bag length of 150mm, it is particularly suitable for sachets and single-use liquid or paste products used in food, personal care, household chemicals, and related industries.
Table of Contents
Why Is Small-Format Liquid Packaging Becoming More Important?
What Is a High Speed Automatic Liquid VFFS Machine for Max Bag Length 150mm?
Why Does Four-Servo Control Matter?
What Are the Key Technical Specifications?
Which Liquid Products Can It Package?
What Are the Main Advantages for Manufacturers?
How Should Buyers Select a Liquid VFFS Machine?
How Can Cleaning and Maintenance Be Simplified?
Final Considerations for Liquid Sachet Packaging
Why Is Small-Format Liquid Packaging Becoming More Important?
Single-use and small-format liquid packaging has become an important option for manufacturers that need convenient portion control, easier transportation, and controlled product consumption. Sachets can be used for condiments, sauces, personal care products, liquid detergents, samples, and other products where a compact package is commercially practical.
However, liquid products create packaging challenges that dry products do not. A small amount of liquid remaining inside a sealing area can affect seal integrity, while differences in viscosity can influence filling accuracy and production stability. For this reason, a suitable vertical form-fill-seal system needs coordinated control of film movement, filling, sealing, and cutting.
For manufacturers seeking a compact automated solution, the High Speed Automatic Liquid VFFS Machine for Max Bag Length 150mm is designed around these requirements. Its maximum 150mm bag length makes it especially suitable for small sachet formats rather than large liquid bags.

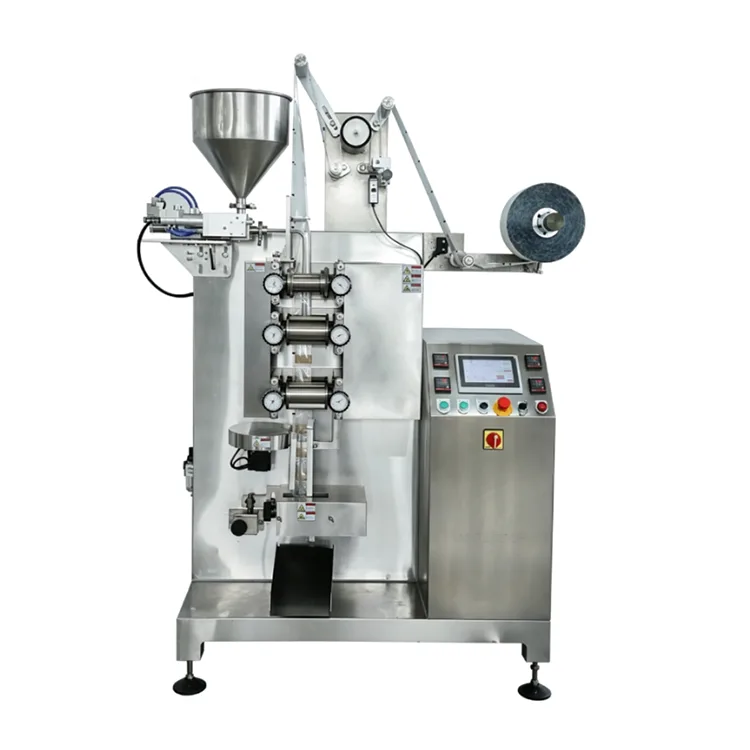

What Is a High Speed Automatic Liquid VFFS Machine for Max Bag Length 150mm?
A vertical form-fill-seal machine creates finished bags from rollstock film within one automated production sequence. The film is formed into a tube, the product is dosed into the package, and the sealing system closes the package before cutting the finished sachet.
The High Speed Automatic Liquid VFFS Machine for Max Bag Length 150mm is specifically configured for liquid and paste products. According to its product specifications, it supports a bag width of 40–100mm, a bag length of 50–150mm, and packaging quantities from 5–100ml. It can also support three-side and four-side sealing formats.
The machine is designed for products such as soy sauce, cooking oil, vinegar, seasoning pastes, shampoos, liquid soap, and similar liquid or viscous materials. This makes it relevant to food, personal care, household, and other consumer-product packaging applications.
How Does the Machine Work?
The packaging process follows a continuous vertical workflow. Understanding this sequence helps buyers evaluate whether the machine matches their production requirements.
- Film feeding: Packaging film is unwound and transported through the forming section.
- Bag forming: The film is shaped into the required package configuration.
- Liquid filling: A suitable pump system dispenses the predetermined quantity of liquid or paste.
- Sealing: The packaging material is sealed according to the selected package format.
- Cutting: The finished sachet is separated from the continuous film structure.
- Discharge: Finished packages leave the machine for subsequent collection, inspection, or secondary packaging.
Because these stages are integrated into one automated process, manufacturers can reduce repetitive manual packaging operations and achieve more consistent production cycles.
Why Does Four-Servo Control Matter?
One of the defining characteristics of this machine is its four-servo configuration. Independent servo control is used for longitudinal sealing, heat sealing, cold sealing, and cutting operations.
This configuration is important because liquid packaging requires accurate synchronization. If film feeding, sealing, filling, and cutting are poorly coordinated, manufacturers may experience inconsistent bag dimensions, weak seals, material waste, or package leakage.
The centralized PLC control system and touchscreen interface allow operators to adjust operating parameters and monitor production conditions. A fault-tracking alarm system can also help identify abnormal operating conditions more quickly.
- More precise synchronization between major packaging movements
- Convenient parameter adjustment through the touchscreen interface
- Better control of sealing and cutting operations
- Improved adaptability to different film materials
- More straightforward troubleshooting through machine alarms
What Are the Key Technical Specifications?
Before purchasing a liquid VFFS machine, buyers should compare the production requirements with the actual machine specifications. The following table summarizes the main parameters of this model.
| Specification | Machine Parameter |
|---|---|
| Packaging Product | Sauce, liquid, paste |
| Packaging Speed | 20–120 bags/min |
| Bag Width | 40–100 mm |
| Bag Length | 50–150 mm |
| Packaging Quantity | 5–100 ml |
| Packaging Form | Three-side seal, four-side seal |
| Compatible Film | PET/AL/NY, PET/PET, PP/PE, CPP |
| Power Supply | 220V/50Hz |
| Power Consumption | 5.5–6.5 kW |
| Air Supply | 0.6 MPa |
| Machine Dimensions | 1356 × 811 × 2018 mm |
| Net Weight | Approx. 620 kg |
These specifications make the machine particularly relevant to manufacturers that require relatively small liquid sachets rather than large-format pouches. Buyers should still confirm the actual product viscosity, target filling volume, film structure, package design, and required output before final equipment selection.
Which Liquid Products Can It Package?
A liquid VFFS system can serve multiple industries when the filling and sealing configuration is correctly matched to the product. The machine is designed for both free-flowing liquids and more viscous materials.
- Food and condiments: soy sauce, vinegar, cooking oil, sauces, and seasoning products.
- Personal care: shampoo, liquid soap, creams, and other suitable liquid formulations.
- Household products: selected liquid cleaning and maintenance products.
- Single-use products: samples, trial-size products, travel-size packages, and portion-controlled products.
For products with significantly different viscosities, manufacturers should select an appropriate dispensing configuration. Available options for this machine include U-bomb pumps, magnetic pumps, mechanical pumps, and other dispensing solutions depending on the product and application.
What Are the Main Advantages for Manufacturers?
1. Automated Small-Sachet Production
The integrated forming, filling, sealing, and cutting process reduces the need for manual intervention and creates a continuous packaging workflow.
2. Flexible Packaging Formats
The machine supports bag lengths from 50mm to 150mm and widths from 40mm to 100mm, providing flexibility for different small-package designs.
3. Consistent Liquid Filling
The filling system can be configured according to product characteristics, helping manufacturers achieve repeatable dosing across production runs.
4. Convenient Operation
The PLC-based touchscreen interface provides a centralized method for setting parameters, monitoring operation, and responding to machine alarms.
5. Easier Maintenance
The relatively clean mechanical structure and accessible liquid-contact components can simplify routine cleaning and maintenance, which is particularly useful when production involves frequent product changeovers.
How Should Buyers Select a Liquid VFFS Machine?
Choosing packaging equipment based solely on maximum speed can lead to an unsuitable investment. A better approach is to evaluate the complete production requirement.
- Confirm the product: Determine whether the product is free-flowing, viscous, or paste-like.
- Define the filling volume: Establish the required ml range and acceptable filling tolerance.
- Confirm bag dimensions: Check the required width and length against the machine's working range.
- Select suitable film: Verify that the intended packaging film is compatible with the sealing system.
- Calculate production demand: Compare the required output with the machine's rated speed.
- Review cleaning requirements: Consider product residue, changeover frequency, and sanitation procedures.
- Check utilities: Confirm electrical power and compressed-air requirements at the installation site.
For additional packaging equipment options, manufacturers can also review the vertical form fill seal VFFS packaging machines available from Soonwell.
How Can Cleaning and Maintenance Be Simplified?
Liquid packaging equipment requires particular attention to cleaning because product residue can accumulate around filling and sealing areas. A machine designed with accessible components and a straightforward mechanical structure can help reduce routine maintenance complexity.
For daily operation, manufacturers should establish a maintenance routine that includes:
- Cleaning product-contact components after scheduled production runs
- Checking filling nozzles and tubes for residue or blockage
- Inspecting sealing components for contamination or film buildup
- Checking film alignment and feeding performance
- Reviewing machine alarms and abnormal operating records
- Inspecting pneumatic and electrical connections according to the maintenance schedule
The touchscreen diagnostic functions can also help operators identify operating issues and reduce troubleshooting time. When different liquids are packaged on the same production line, appropriate cleaning and changeover procedures are essential for maintaining product quality.
Frequently Asked Questions
What is the maximum bag length of this liquid VFFS machine?
The maximum bag length is 150mm, with an adjustable bag length range of approximately 50–150mm. This makes the machine suitable for small-format sachets and portion-sized liquid packaging.
What filling volume can the machine handle?
The specified packaging quantity is 5–100ml. The actual suitable filling range should be confirmed according to the product characteristics, dispensing system, package dimensions, and required filling accuracy.
Can it package viscous liquid products?
Yes. The machine is designed for both liquids and pastes, including products such as sauces, seasoning pastes, shampoo, and liquid soap. Different dispensing pump configurations can be selected according to viscosity and filling requirements.
What film materials are compatible with the machine?
The listed compatible film structures include PET/AL/NY, PET/PET, PP/PE, and CPP. Final film selection should be evaluated according to product properties, sealing temperature, barrier requirements, and package design.
How fast can the machine operate?
The specified packaging speed is 20–120 bags per minute. Actual output can vary depending on bag dimensions, filling volume, product viscosity, film characteristics, sealing parameters, and production conditions.
Final Considerations for Liquid Sachet Packaging
A reliable liquid sachet packaging system should balance speed, filling control, sealing performance, package flexibility, operator convenience, and maintainability. The High Speed Automatic Liquid VFFS Machine for Max Bag Length 150mm is designed around these requirements, combining four-servo control, PLC operation, configurable liquid dispensing, and small-format bag production in one automated platform.
For manufacturers evaluating a China packaging machine manufacturer or supplier, the most effective approach is to match the equipment configuration with the actual product, film, filling volume, bag dimensions, and production target. If you are planning a new liquid sachet line or upgrading an existing packaging process, contact us to discuss your product requirements, packaging format, and suitable machine configuration with Soonwell.
